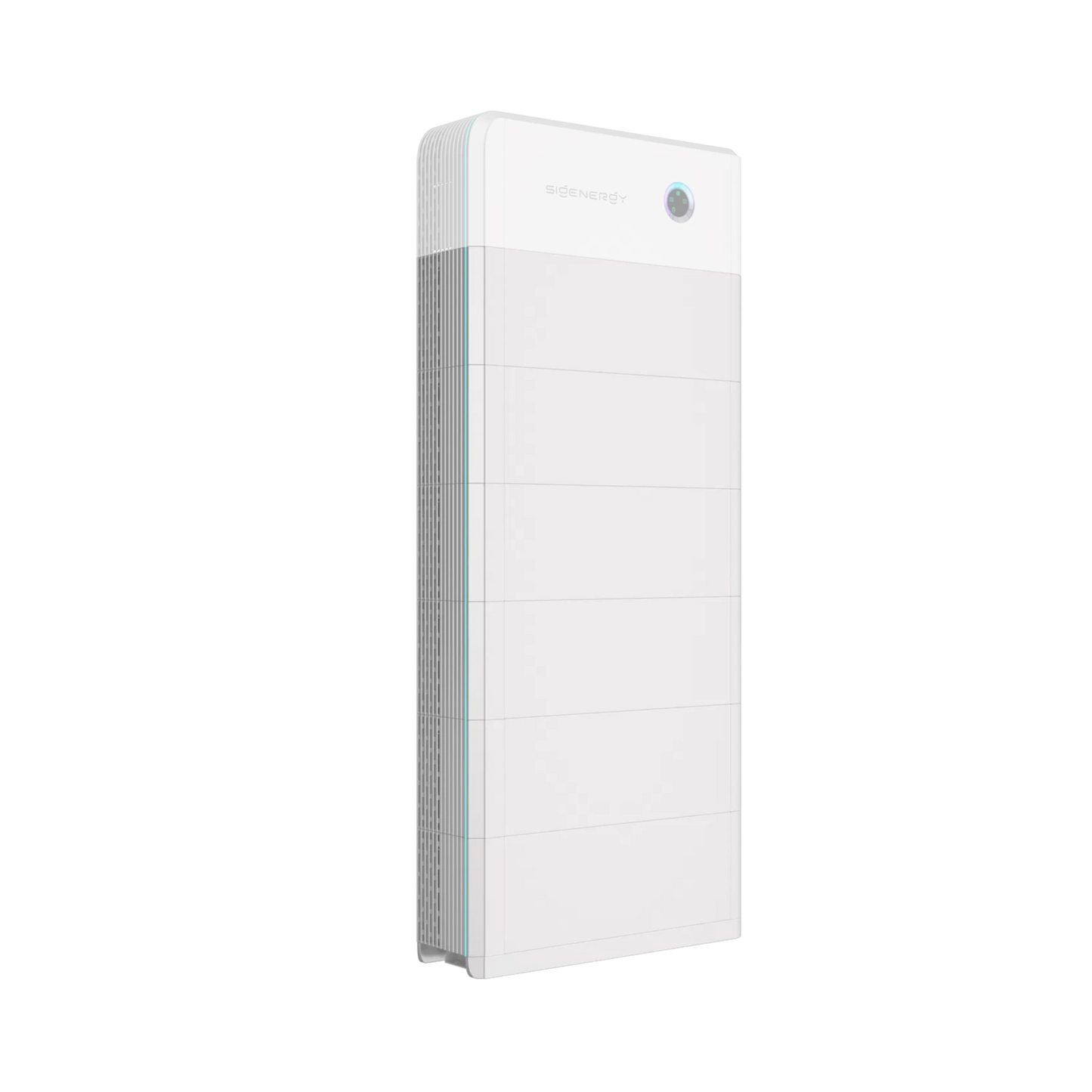

Sigenergy Sigen Battery 10.0

The Sigenergy SigenStor BAT 10.0 is a high-performance, modular high-voltage battery storage system specifically designed for use in modern photovoltaic and energy storage systems.
With a usable capacity of 8.76 kWh and a three-phase operating voltage range of 600–900 V, it offers maximum efficiency, safety and flexibility.

Thanks to the scalable design, the storage capacity can be expanded at any time – up to six battery modules per tower or by connecting several systems in parallel to cover even demanding energy requirements.
The cobalt-free lithium iron phosphate (LiFePO₄) technology ensures maximum safety, high cycle stability and a lifespan of up to 10,000 charging cycles.

With IP66 protection, natural convection, and a robust housing, the storage unit is suitable for both indoor and outdoor installations. The plug-and-play design allows for quick and easy installation without complex wiring.

Technical data

•      Cell technology: Lithium iron phosphate (LiFePO₄)
•         Usable capacity: 8.76 kWh (max. gross 9.04 kWh)
•         Charging/discharging power: 4.6 kW continuous, 6.9 kW peak load (10 seconds)
•         Operating voltage range (three-phase): 600–900 V
•         Lifespan: up to 10,000 cycles (at 25 °C and 0.5°C C-rate)
•         Protection class & cooling: IP66, natural convection
•       Number of modules per tower: max. 6 battery modules
•        Warranty: 10 years
•          Dimensions (W × H × D): 765 × 270 × 265 mm
•     Weight: 78 kg
